稱重傳感器防雷箱LCP-01

 稱重傳感器防雷箱LCP-01

特點：
1、Six wires and shield protection works with four or six wire systems
     6線和屏蔽保護搭配，使用在4線或6線系統

2、Suitable for compression or tension cells
     適用于壓力或張緊傳感器

3、Low series impedance, loadcells do not need recalibration
   低阻抗，無需重新校準傳感器

4、NEMA®-12 (IP-55) rated, suitable for outdoor use
    防塵防水，戶外使用
5、Helps protect against excitation over-voltage and prevent loadcell damage

   有助于防止勵磁過電壓，避免稱重傳感器損壞

PRODUCT ATTRIBUTES：

Max Discharge Current (Imax), Shield to Ground：10KA（8/20us)

Max Discharge Current (Imax), Signal to Shield :  0.3KA（8/20us)

Voltage Protection Level (Up), Shield to Ground : 90V

Voltage Protection Level (Up), Signal to Shield : 30V

Voltage Protection Level (Up), Signal to Signal :15V

Loop Resistance :0.3Ω

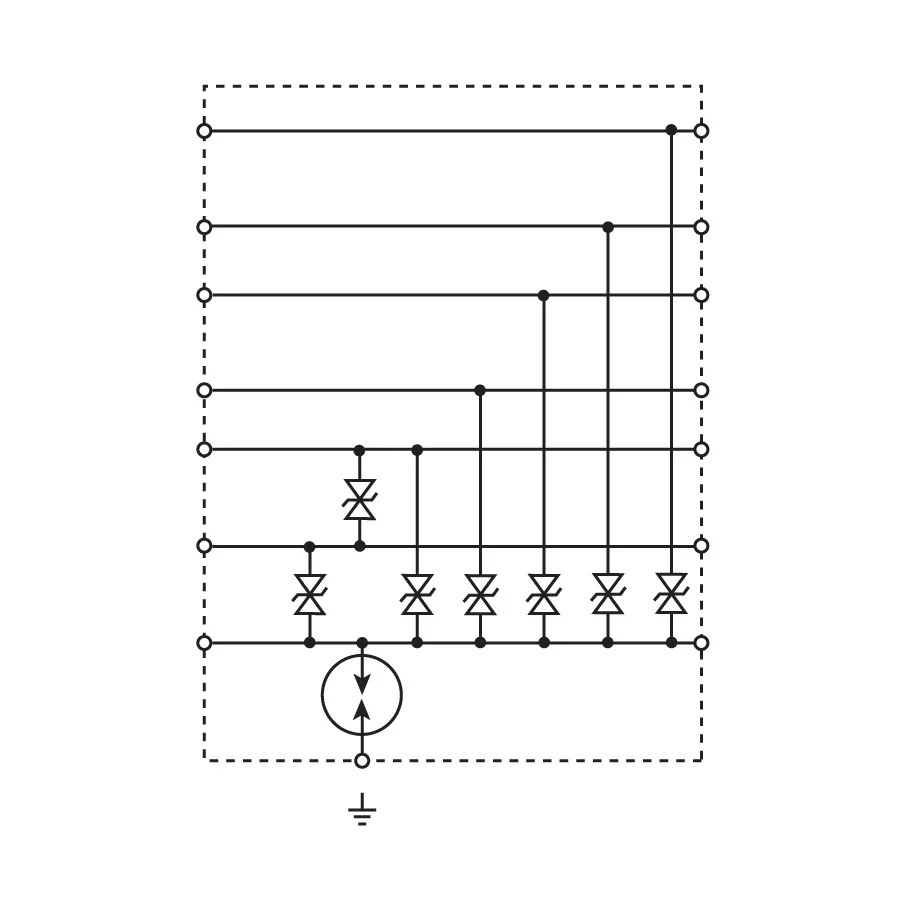

Technology ：Silicon Avalanche Diode (SAD)

Enclosure Rating ：NEMA® 12 (IP55)
